Automatic Aluminum Pergola Louvres Outdoor
Sale price
$1,753.33
Regular price
$2,279.00
Features
- All-Aluminum Construction with Powder coating
Built with high-grade 6063 T5 aluminum and finished with industry-leading powder coating, this pergola offers superior resistance to corrosion, fading, and peeling—ensuring long-lasting durability and a sleek, refined look. - Adjustable Louvers
Tilt the louvers open for sunlight and airflow, or close them for full shade and rain protection. - Integrated Drainage System
Rainwater flows from the louvers into hidden gutter channels and down through the posts, keeping the interior dry and storm-ready. - Flexible Size Options
Multiple size options are available, and custom sizes can also be provided according to your specific requirements, whether you’re shading a lounge zone, patio, or hot tub. - DIY-Friendly Assembly
Ships in clearly labeled boxes. With two or more competent adults can assemble the pergola in 2-4 hours.
Packaging & delivery
Mingic pergolas are manufactured in our factory located in Guangdong, China.
Each unit is custom-made with a production lead time of approximately 20–30 days.
The shipping time varies depending on the destination country and logistics option selected:
- Asia: 1–2 weeks
- Australia / New Zealand: 2–4 weeks
- Europe / North America: 4–6 weeks
We will provide detailed shipping updates and tracking information once your order has been dispatched.
Warranty
A Mingic product is covered by a limited-tiered warranty:
10-Year Warranty: Applies to structural components like posts, base plates, and beams.
5-Year Warranty: Covers movable parts, including louvers, hand cranks, and mechanisms.
2-Year Warranty: Applies to accessories and electrical components.
You may also like
Structural Diagram
(1)Connecting rod
(2)Crossbeam cover plate
(3)Metal block for column-beam connection
(4)Crossbeam
(5)Column
(6)Tubular motor
(7)Built-in water sink
(8)Waterproof sleeve for crossbeam LED strip
(9)Flip flap
(10)Metal block for connecting column and bottom plate
(11)Column bottom plate
Aluminum Profile
Name: Flap
Materiat thickness:1.5mm
Name: Crossbeam
Materiat thickness: 2.2mm
Name: Crossbeam sink
Material thickness: 1.3mm
Name: Column
Material thickness: 2.2mm
ADVANTAGE
Wide opening angle
The opening and closing angle of the blade reaches 100°.You can adjust the shading degree and air intake according to needs.

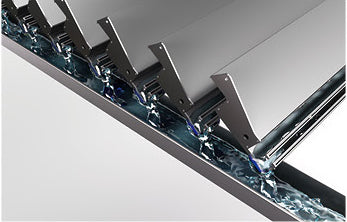

Dual-groovewater proofing for louver
The louver is equipped with a side drainage system, which can be opened even after heavy rain. Rairvater will flow into the sink from the blades and will not cause dripping
Invisible drainage
The invisible drainage system can allow rainwater to be directly discharged from the top surface of the louvers into the columns. Then it is discharged through underground drainage channels.

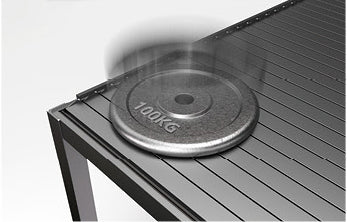

Carrying capacity of 100 kilograms
The columns and beams are larger and thicker, the blades are wider and thicker, and the real materials are more stable and durable, with a resistance to snow pressure of up to 100kg/square meter.
Aluminum alloy & powder coating
Made of high-quality aluminum alloy, it integrates strongwind pressure resistance,corrosion resistance, anddeformation resistance; High density powder coating on thesurface, non fading for 20 years.

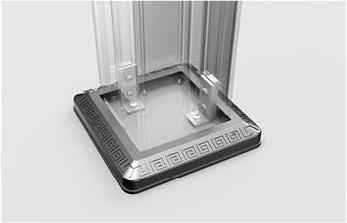

Column base plate L-type support reinforce
The L-type support bottom plate can prevent negative effects such as looseness, rust, or corrosion, improving connection strength, and enhancing the stability and safety of the structure.
Classic
From $1621
view product page
Size:
3×3m;3×3.5m;3.5×3.5m;3×4m;3×5m;3×6m;4×4m;4.5×4m;4×6m;Customizable
Flap profile:
175mm×35mm×1.4mm
Cossbeam profile:
165mm×40mm×2.0mm
Column profile:
150mm×150mm×2.2mm
Louver Adjustment:
electric, up tp 90°
Weather Resistance:
UV Protection
Corrosion Resistance
Prevent Storms
Deluxe
From $1621
view product page
Size:
3×3m;3×3.5m;3.5×3.5m;3×4m;3×5m;3×6m;4×4m;4.5×4m;4×6m;Customizable
Flap profile:
200mm×45mm×1.5mm
Cossbeam profile:
190mm×45mm×2.2mm
Column profile:
150mm×150mm×2.2mm
Louver Adjustment:
electric, up tp 90°
Weather Resistance:
UV Protection
Corrosion Resistance
Prevent Storms
Supreme
From $1621
view product page
Size:
3×3m;3×3.5m;3.5×3.5m;3×4m;3×5m;3×6m;4×4m;4.5×4m;4×6m;Customizable
Flap profile:
250mm×70mm×2.0mm
Cossbeam profile:
260mm×65mm×2.5mm
Column profile:
180mm×180mm×2.2mm
Louver Adjustment:
electric, up tp 90°
Weather Resistance:
UV Protection
Corrosion Resistance
Prevent Storms
